TEYES Tyre Pressure Monitoring System

Dedicated Tyre Pressure Monitoring System by TEYES

• Brand Name: TEyes
• Material Type: ABS
• Max Operating Pressure: 5 Bar
• External Testing Certification: ce
• Special Features: car navigation dedicated
• Model Name: TP02
• Voltage: 5V
• 1 Year Warranty

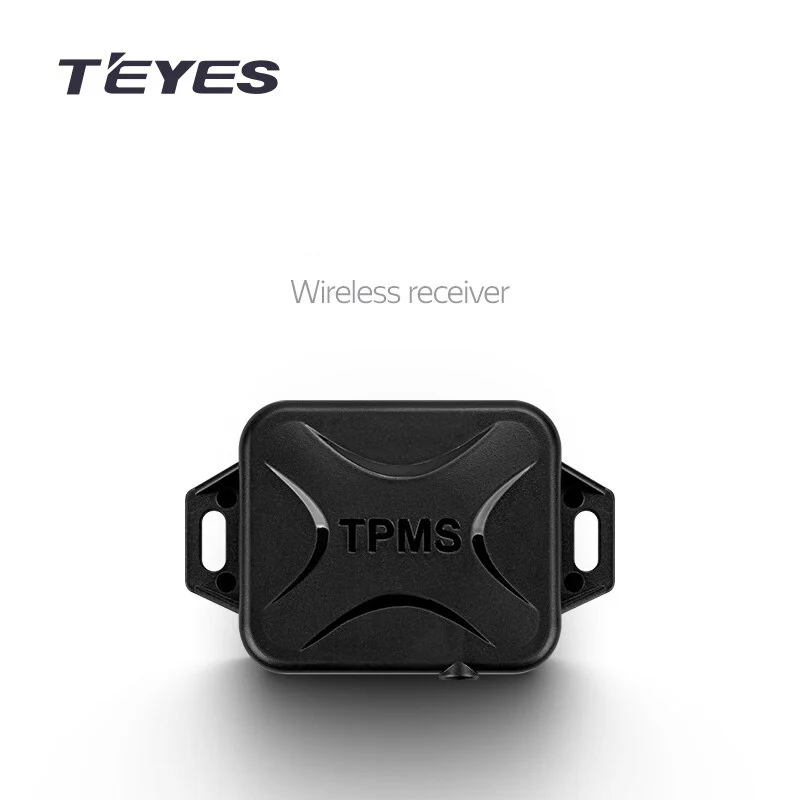

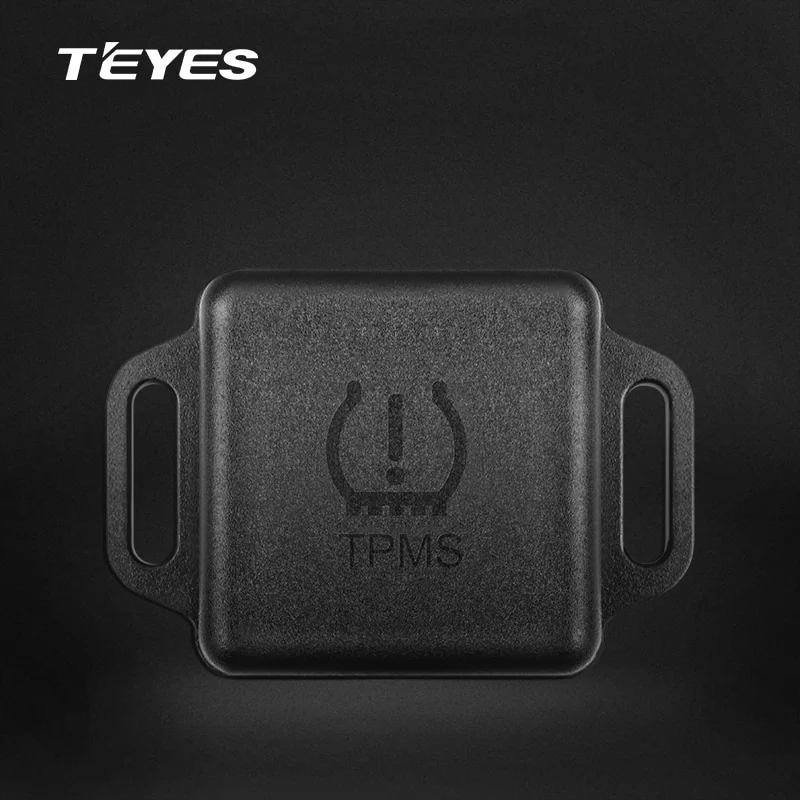

• Receiver size: L 89mm * W 65mm * H16mm (does not include USB cable-length 240mm)

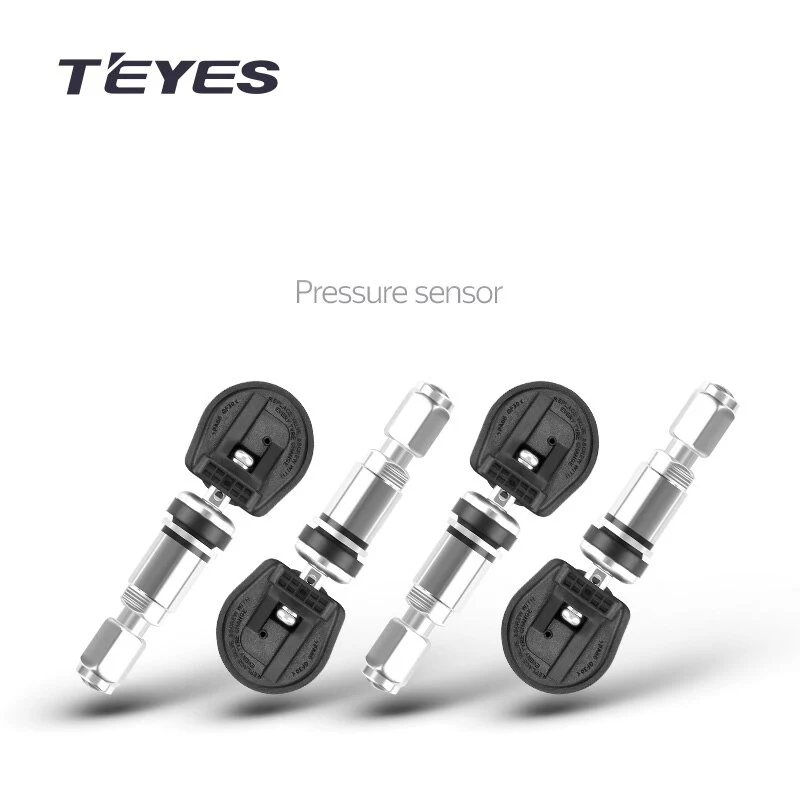

• Transmitter size: L 79mm*W29mm* H20mm
• Operating Frequency: 433.92MHz

NOTE: If you require a spare TPMS sensor, it can be found here

NOTE: Not suitable for low profile tyres or tyres pressurised higher than 5 Bar

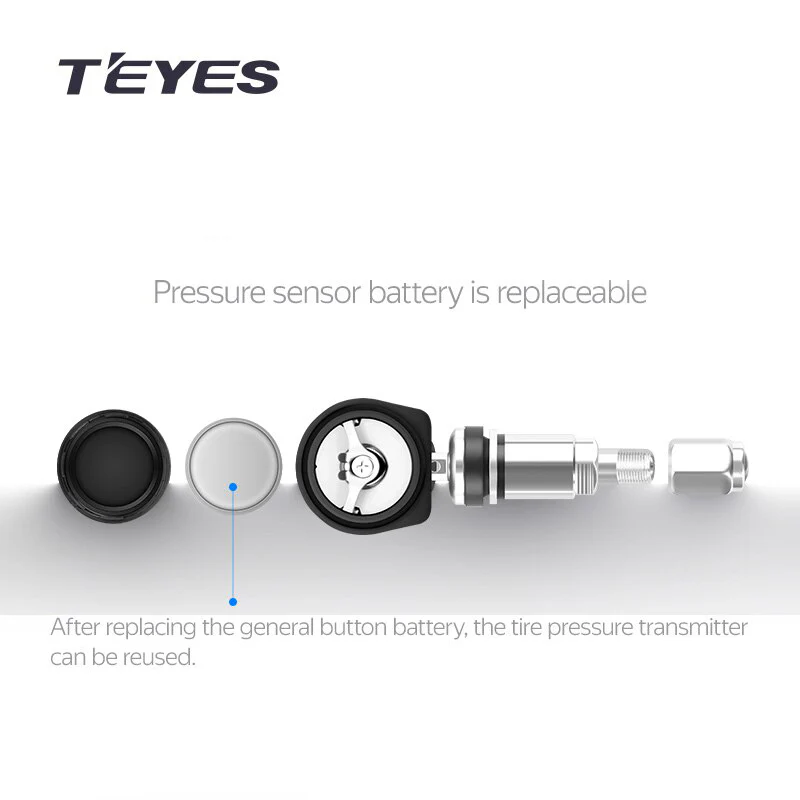

NOTE: Please be aware that logistic companies do not like shipping batteries and may remove them. They are 4 x CR2032 Type button batteries

NOTE: Before installation into the tyres, test all the sensors to make sure everything is working.

NOTE: We recommend to always use brand new batteries before installation.

The USB tyre pressure receiver box should be connected to the USB port of E area. Do not plug into the USB port in the D area. Otherwise it will not be recognised.
