SPECIFICATIONS



Brand Name: T'EYES

Certification: CE,EAC

Digital Media Format: Mp3,MP4,WMA,JPEG

Din: One Din

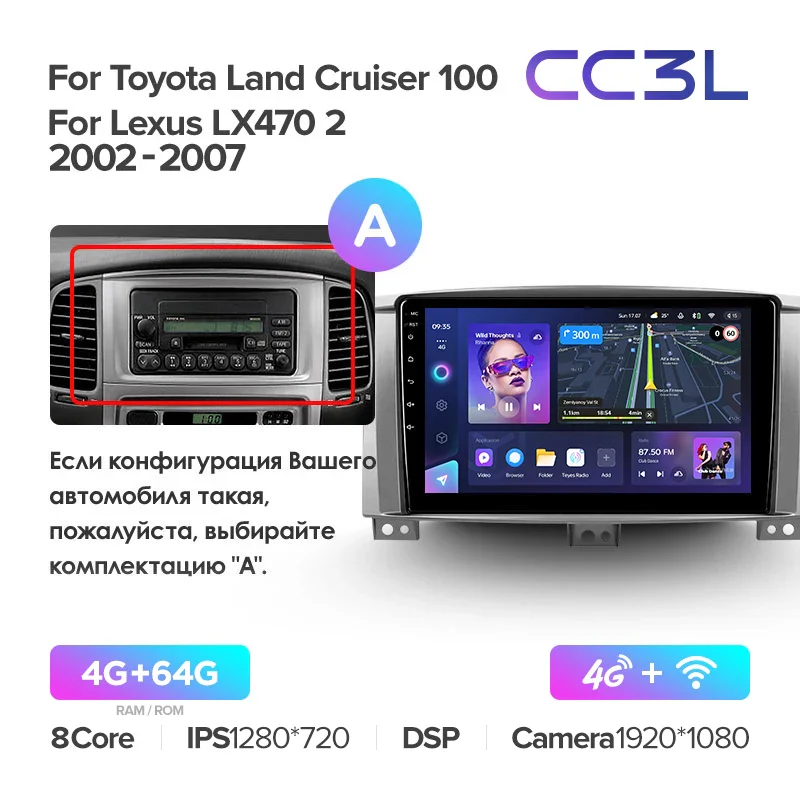

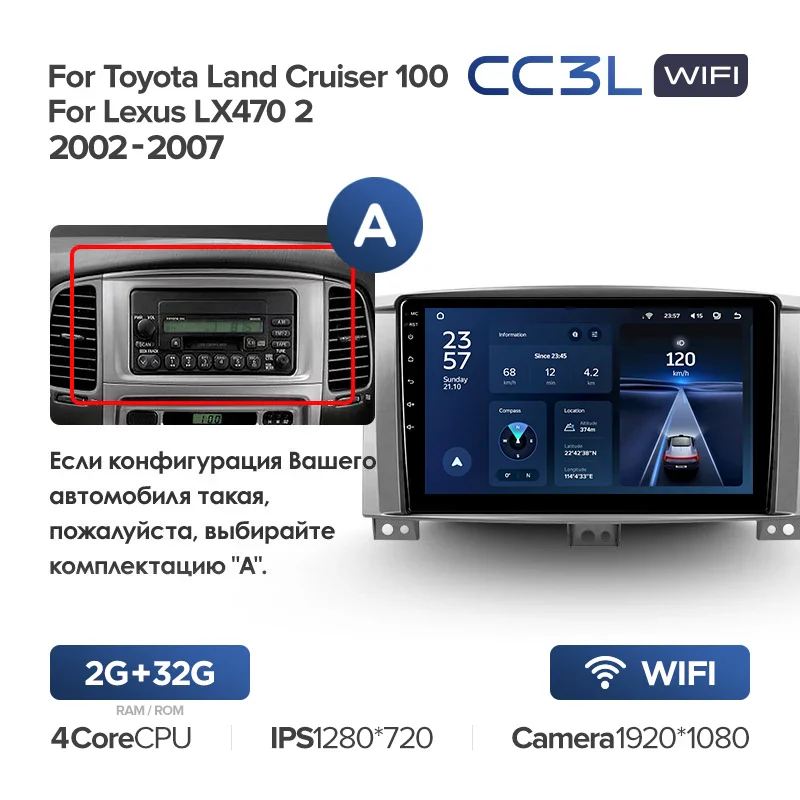

Display Size: OPTION A 9"

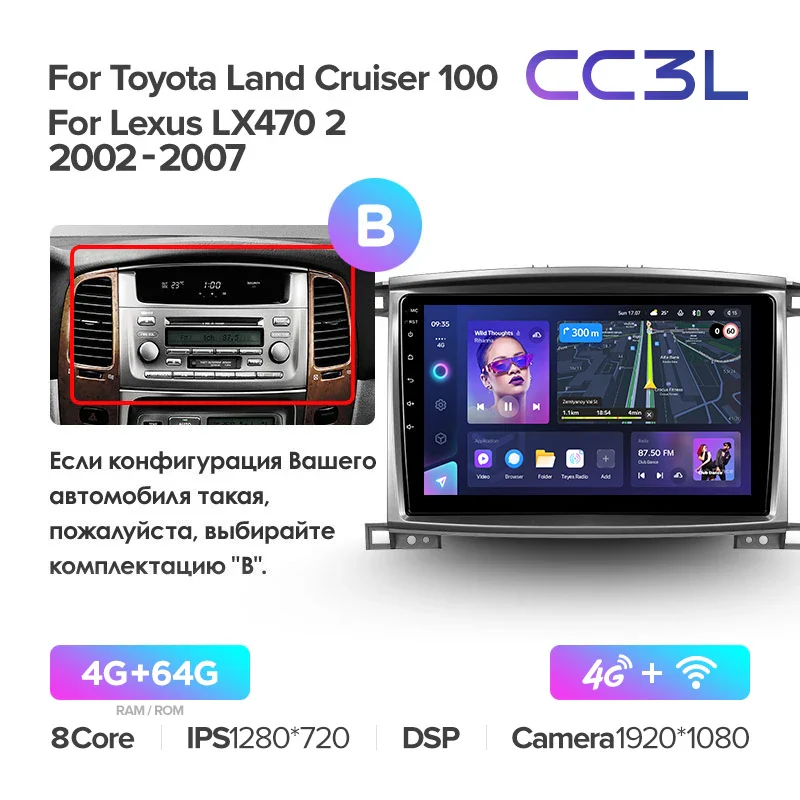

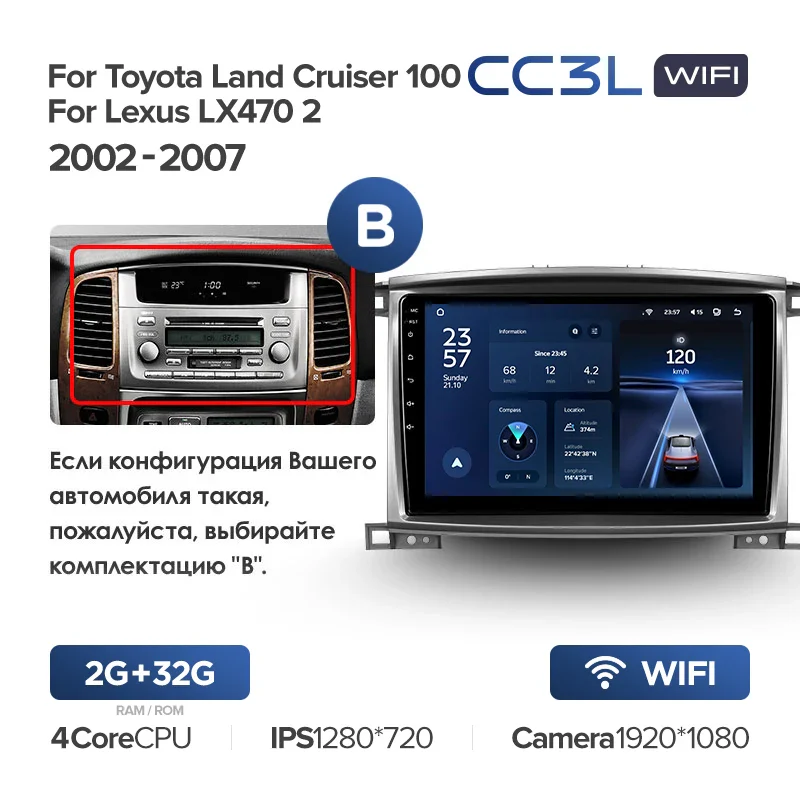

Display Size: OPTION B & C 10.2"

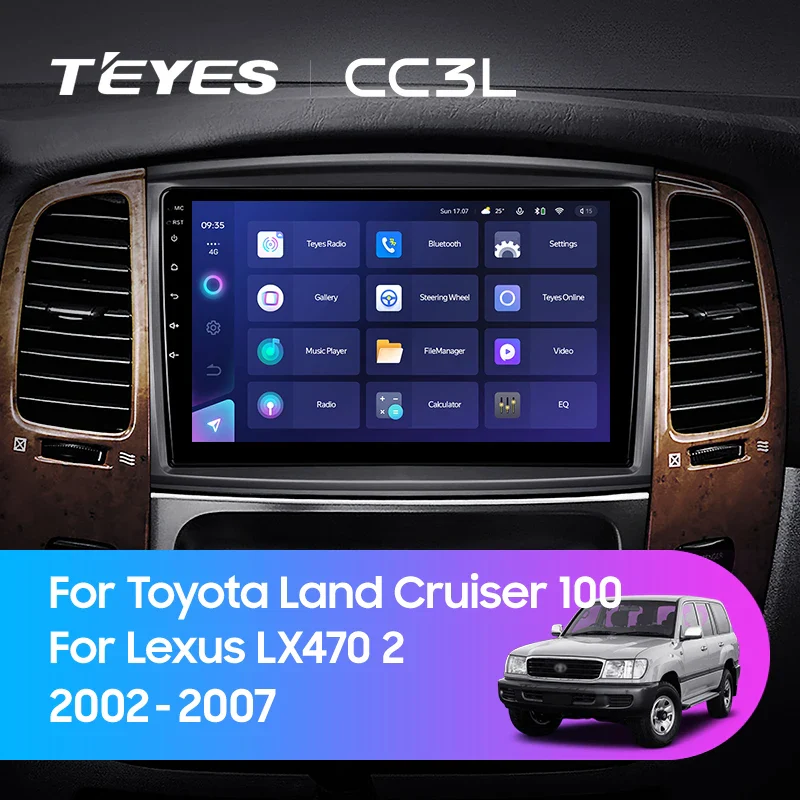

For Vehicle Brands/Model: TOYOTA

Hign-concerned Chemical: None

OSD Language: Chinese (Simplified),Chinese (Traditional),Russian,English

Operating System: Android

Special Features: Built-in GPS,Mobile Phone,MP3 players

NOTE: Diesel versions using OBD-M protocols are not compatible with OBDII

NOTE: Does not support factory reverse camera

NOTE: If using A HARNESS, leave the 2 wire black plug unplugged to avoid conflicts with the system.

NOTE: If your Accessories is a 10Amp fuse you may need to upgrade it as the CC3 uses a 15Amp fuse on board

NOTE: We had 2 reported instances of ground line pin being misconfigured that was preventing the unit turning on.

NOTE: Some instances of amplifiers are causing a "hum" sound in the system . Reports are to adjust the sound with the dashboard volume control which is the master for the factory amplfier and lower your output power. Use your steering controls afterwards to control your volume.

NOTE: If A/C controls dont work after being setup, please update all 4 APKs in the TEYES app



NOTE: If the height of your A frame type is 135mm, please see the modification needed further below to make it sit flush.

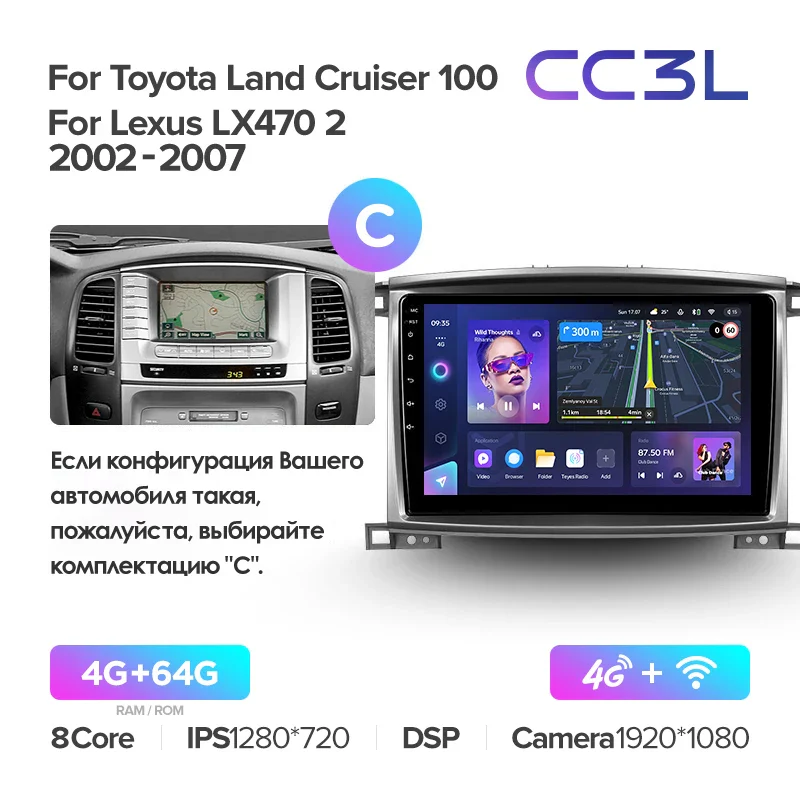

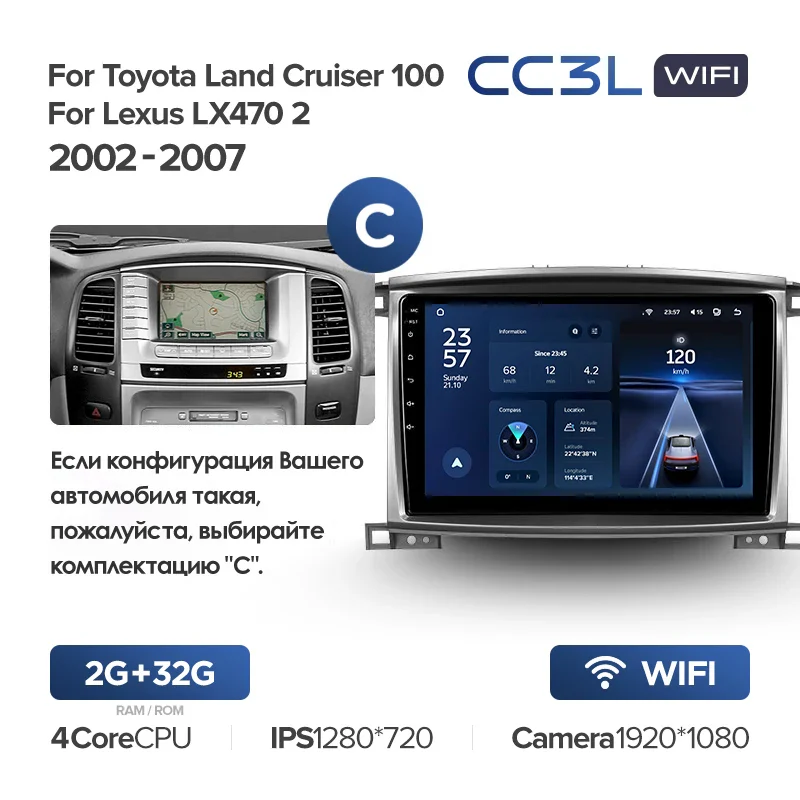

NOTE: This head unit for C is also compatible



NOTE: If you have a gap form after install, you must cut the plastic bracket off for a flush fit.



NOTE: The below model requires Option B or C frame, however you must buy this toyota harness (here)

NOTE: If with C model you have no sound in the rear, check this harness and make the modification as per below by shifting 2 wires pointed out by the arrows to the 2 slots on the opposite side.
