SPECIFICATIONS



Accessory Type: GPS WIFI 4G antenna

Brand Name: T'EYES

Built-in CD player: No

Built-in DVD Player: No

Built-in Screen: Yes

Certification: CE,EAC,FCC,pse

Cherokee-Year: 2014,2015

Chipset: 6490

Digital Media Format: Mp3,MP4,WMA,JPEG

Din: One Din

Display Size: 10.2"

For Vehicle Brands/Model: JEEP

High-concerned chemical: None

Interface: USB3.0

Is touch screen: Yes

Item Size: 10.2 inch

Item Weight: 2

Jeep Model: Cherokee

Material: PCB + Hardware + Screen

OSD Language: Chinese (Simplified),Chinese (Traditional),German,Russian,French,Korean,Japanese,Spanish,Italian,English

Operating System: Android 13

Out Power: 4*25W

Output Type: Colored

Preset Station: YES

Processor Speed: 2.7GHz

Processor Type: 8Core

RAM: 8G

ROM: 128G

Resolution: 2000*1200

Special Features: wifi function,Support 3G Network,Support 4G Network,Support Can-Bus,Built-in GPS,Mobile Phone,MP3 players,Voice control,dsp,CarPlay,android auto,Reversing Input,Split Screen,Remote Controller Included,Support steering wheel control

TF/Micro SD Slot: 3

Tuner Type: FM AM

Voltage: 12 V

Warranty: 12

Heated Steering Wheel canbus update - This will enable heated steering to work again

NOTE: Disable  heated steering wheel under comfort setting using the factory unit before replacing it.

NOTE: If you have single climate control (not dual) at the moment we cannot see the temp on the screen. See this solution here

NOTE: Factory brake service, rear radar and blind spot sensors are not compatible with canbus protocol

NOTE: Connect the A port harness to the provided harness RCA for CD audio

NOTE: please go to settings - device - sound - power conditioner and with the latest firmware update installed, set it to 30, set the DSP to rock

NOTE: You can retain your OEM GPS with a Fakra Type Z cable (click here)

NOTE: Center control USB ports are retained

NOTE: Will retain Parking sense, Lane assistance and heated seat function.

NOTE: Heated steering function & XM Radio are not retained. Although some reports of the heated steering function turns on with the thermostat

NOTE: If upon install you don't have sound and the canbus settings and installation is correct, update the canbus software - however you may lose heated steering function

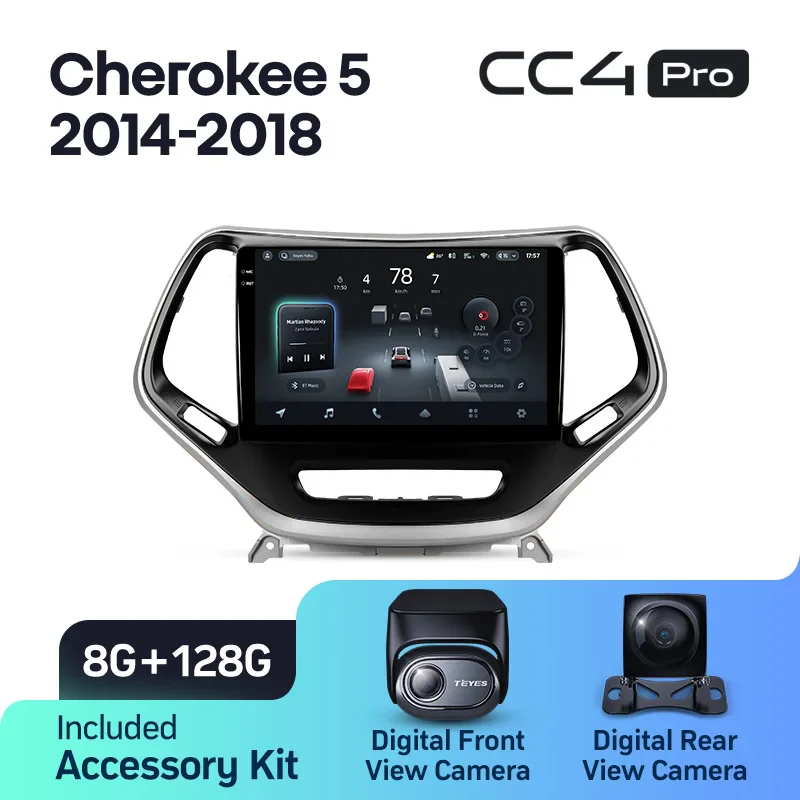

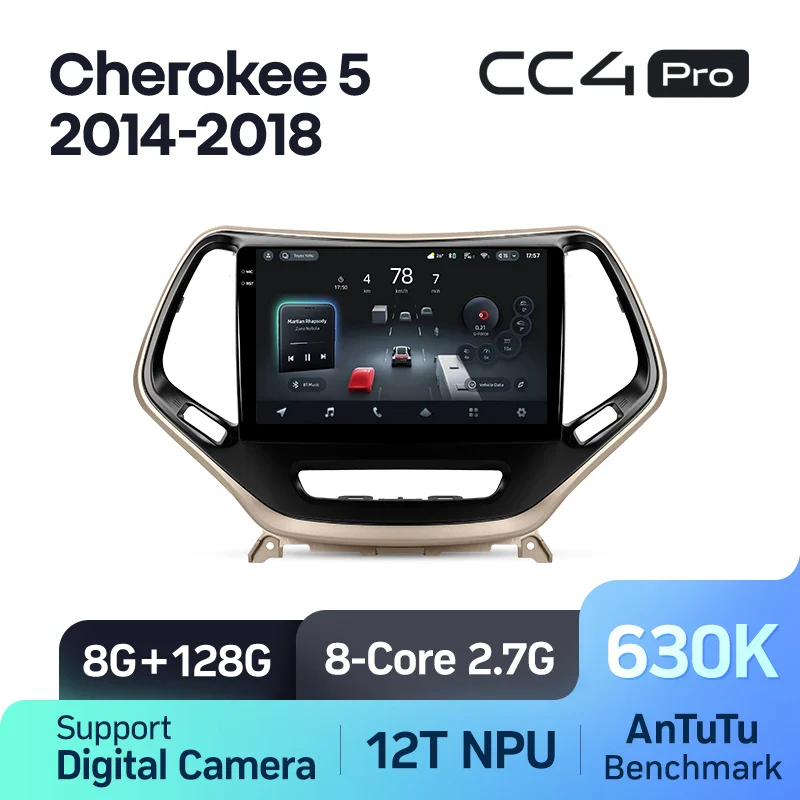

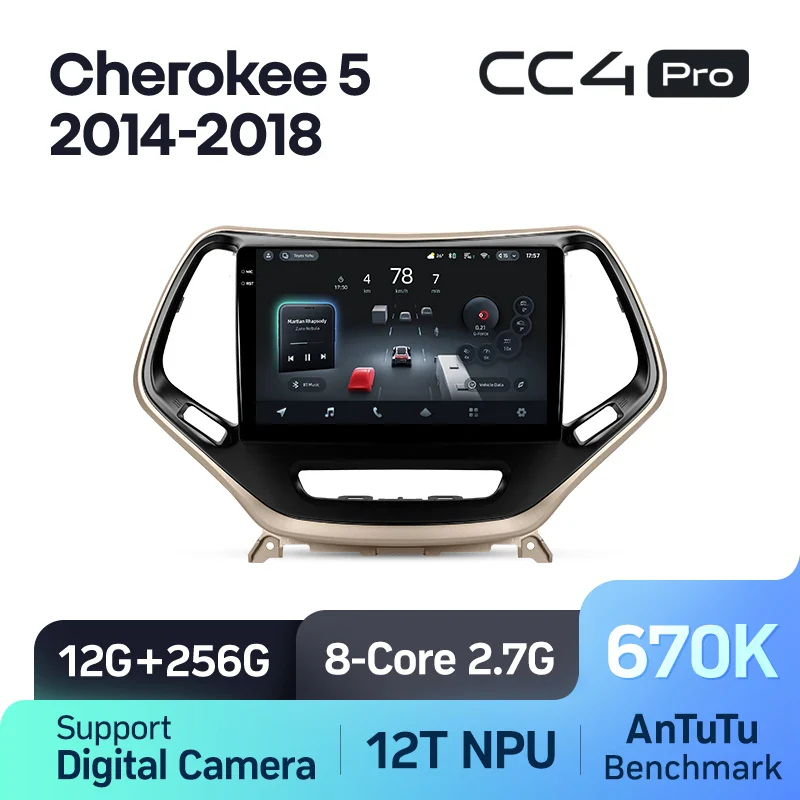

You can choose between silver and gold frames. The images below are just for examples.

NOTE: If the sound is too loud, go to settings - device - sound - power conditioning and set it to 30

NOTE: The below head units are supported
