SPECIFICATIONS



Brand Name: TEyes

Din: One Din

Display Size: 10.2"

For Vehicle Brands/Model: JEEP

OSD Language: Chinese (Simplified)

OSD Language: Chinese (Traditional)

OSD Language: Russian

OSD Language: English

Digital Media Format: Mp3

Digital Media Format: MP4

Digital Media Format: WMA

Digital Media Format: JPEG

Special Feature: wifi function

Special Feature: Support steering wheel control

Special Feature: Support Can-Bus

Certification: CE

Certification: EAC

Special Features: Built-in GPS

Special Features: Mobile Phone

Special Features: MP3 players

Operating System: Android

Item Weight: 2

Voltage: 12V

Heated Steering Wheel canbus update - This will enable heated steering to work again

NOTE: Disable  heated steering wheel under comfort setting using the factory unit before replacing it.

NOTE: If you have single climate control (not dual) at the moment we cannot see the temp on the screen. See this solution here

NOTE: Factory brake service, rear radar and blind spot sensors are not compatible with canbus protocol

NOTE: Connect the A port harness to the provided harness RCA for CD audio

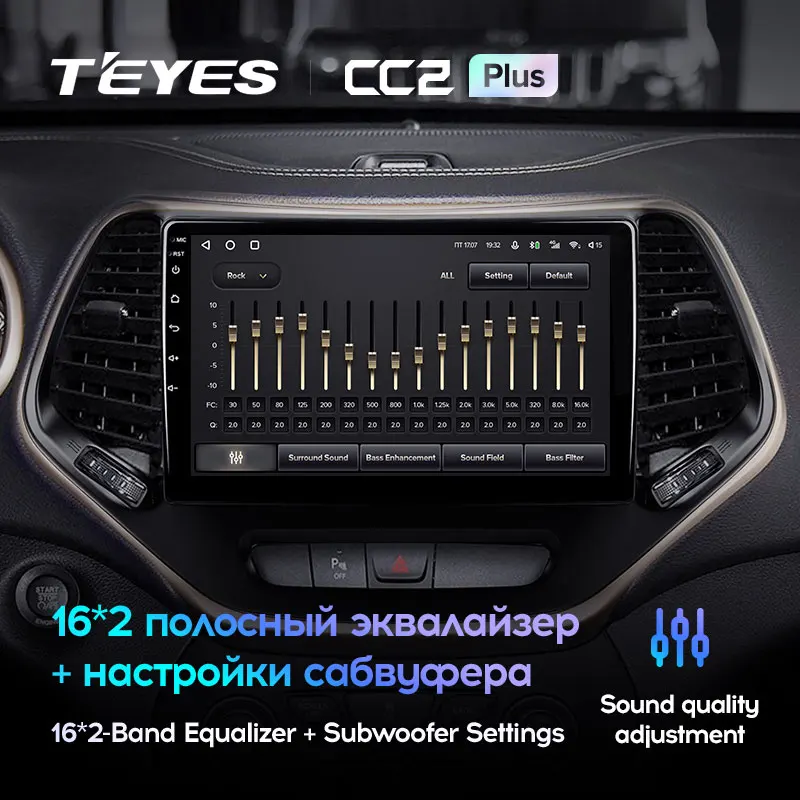

NOTE: please go to settings - device - sound - power conditioner and with the latest firmware update installed, set it to 30, set the DSP to rock

NOTE: You can retain your OEM GPS with a Fakra Type Z cable (click here)

NOTE: Center control USB ports are retained

NOTE: Will retain Parking sense, Lane assistance and heated seat function.

NOTE: Heated steering function & XM Radio are not retained. Although some reports of the heated steering function turns on with the thermostat

NOTE: If upon install you don't have sound and the canbus settings and installation is correct, update the canbus software - however you may lose heated steering function

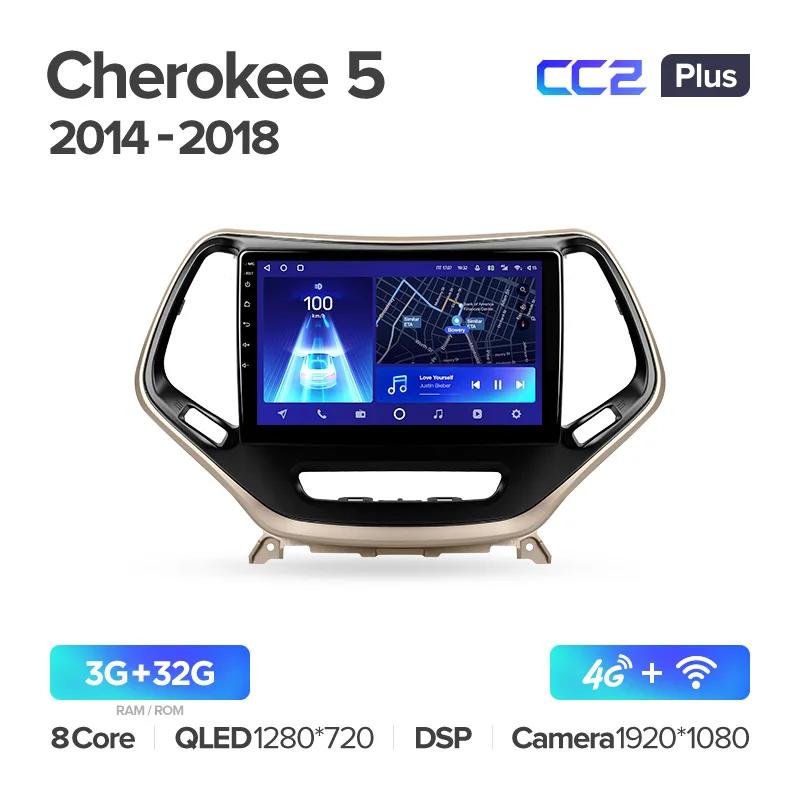

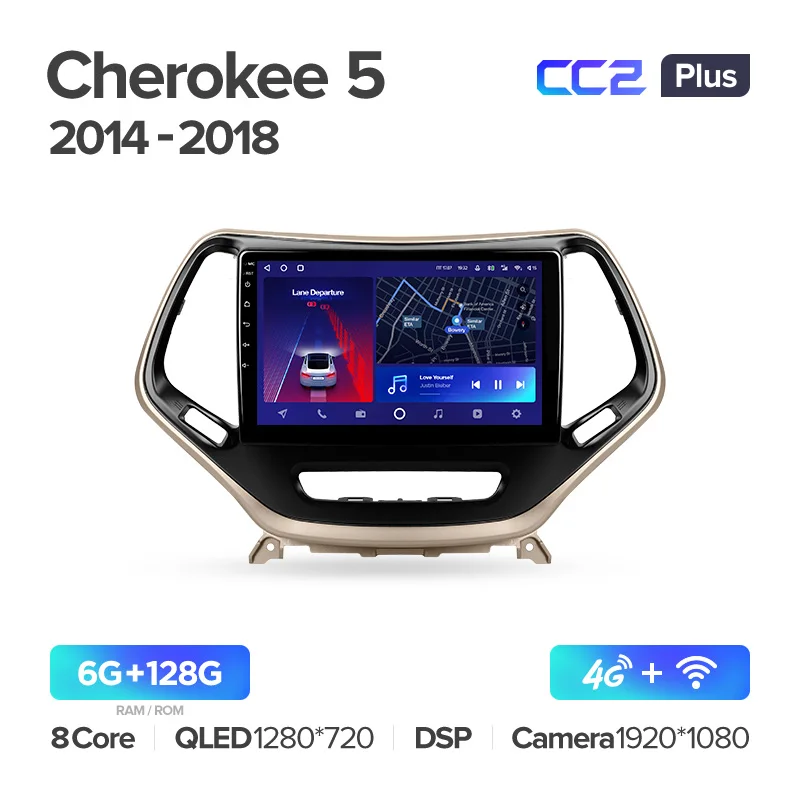

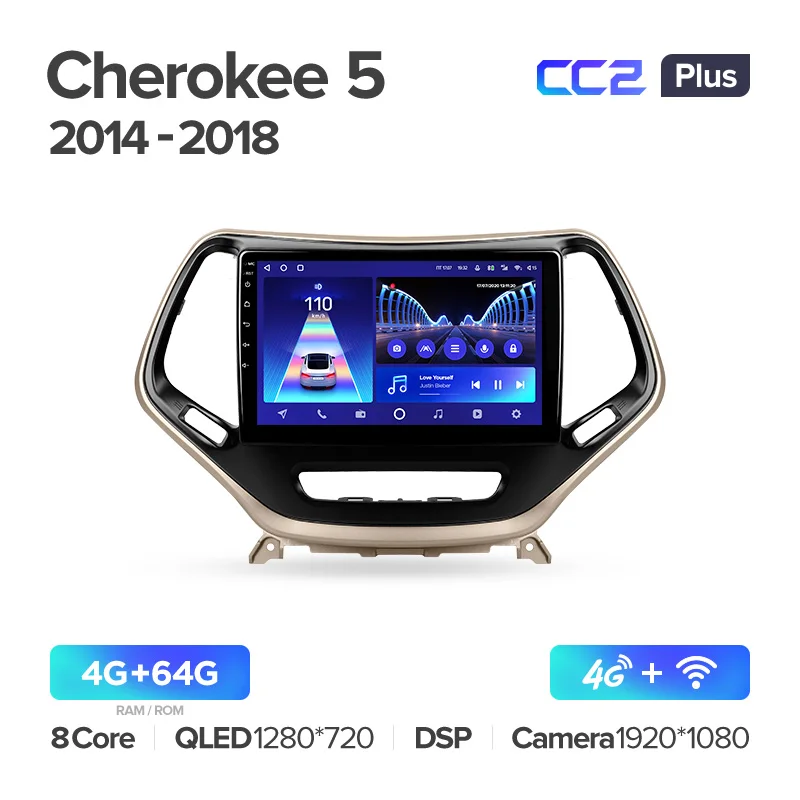

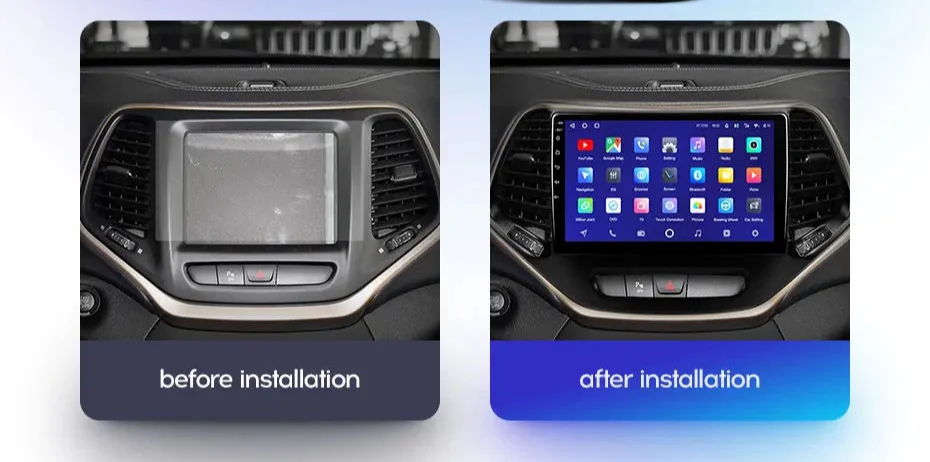

You can choose between silver and gold frames. The images below are just for examples.

NOTE: If the sound is too loud, go to settings - device - sound - power conditioning and set it to 30

NOTE: The below head units are supported
